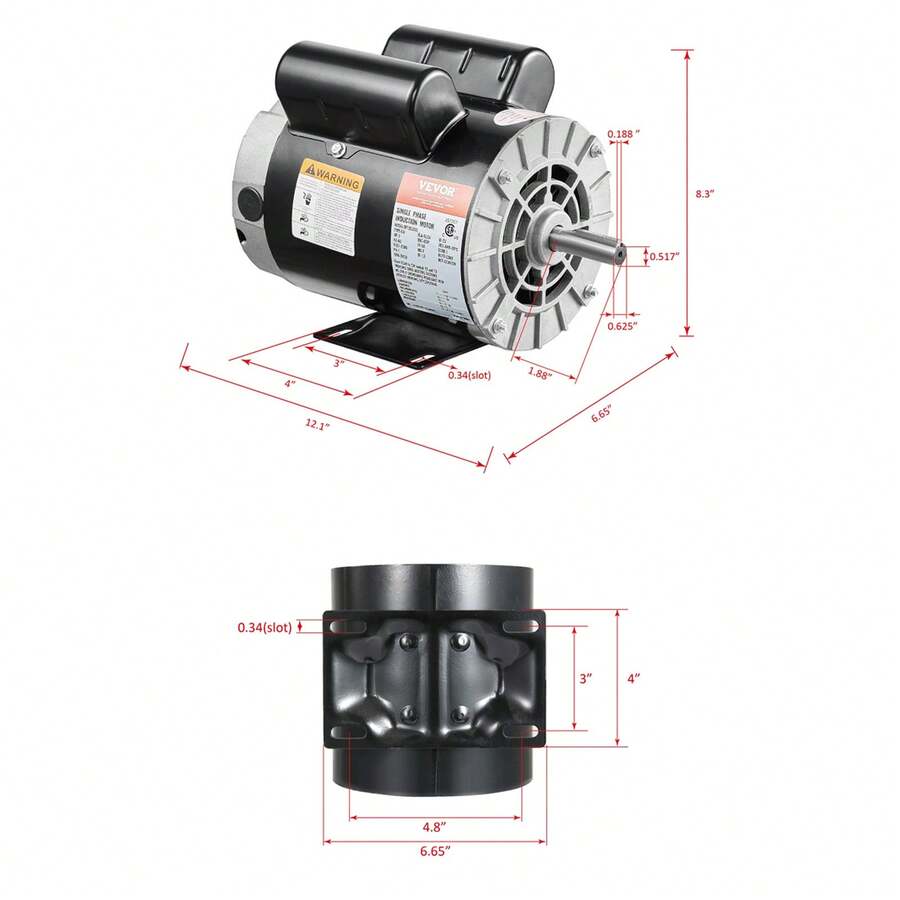

About these items These air compressor motors deliver up to 3450 RPM with options ranging from 2HP to 5HP for demanding industrial and commercial applications. The high-speed operation ensures efficient performance, whether you're powering a compressor, pump, or other machinery. Built with sturdy steel frames and keyed shafts ranging from 5/8" to 7/8" in diameter, these motors are engineered for strength and compatibility. Each unit features a 1.88" or 2.25" shaft length and a 0.188" keyway for secure and reliable coupling. Designed with an ODP (Open Drip-Proof) enclosure, these motors are best suited for clean and dry locations. The high-quality steel construction helps protect internal components from external damage and ensures a longer service life. Each motor supports reversible rotation (CW/CCW) with the factory setting at CCW. This feature allows flexible installation and easier integration with various equipment setups, streamlining wiring and orientation adjustments. These motors are compatible with appropriate circuit breakers-ranging from 25 amps to 60 amps depending on the model. This ensures safe startup and continuous operation, minimizing electrical risks and equipment downtime. Key Differences Power options vary by model: 2HP (DP120256SL), 3HP (DP120356L), 3.7HP (DP123756), and two 5HP models (DP120556S and DP120556HZ) to meet different operational demands. Shaft specifications differ: most models feature a 5/8" shaft, while the DP120556HZ has a larger 7/8" shaft with a longer 2.25" length for heavier loads. Electrical configurations include 115V/230V dual-voltage for the 2HP model, while all other models operate solely on 230V. Frame type varies between standard 56 and enhanced 56HZ for high-duty applications. Circuit breaker requirements scale with motor size, from 25A for 2HP to 60A for the most powerful 5HP version. Specifications Model DP120256SL (2HP) Voltage: 115V / 230V Frequency: 60Hz Current: 20A / 10A Rotation Speed: 3450 RPM Service Factor (SF): 1.0 Enclosure: ODP Frame Size: 56 Shaft Diameter: 5/8" Keyed Shaft Shaft Length: 1.88" Keyway Size: 0.188" Net Weight: 25.2 lbs / 11.45 kg Model DP120356L (3HP) Voltage: 230V Frequency: 60Hz Current: 15.5A Rotation Speed: 3450 RPM Service Factor (SF): 1.0 Enclosure: ODP Frame Size: 56 Shaft Diameter: 5/8" Keyed Shaft Shaft Length: 1.88" Keyway Size: 0.188" Net Weight: 29.3 lbs / 13.25 kg Model DP123756 (3.7HP) Voltage: 230V Frequency: 60Hz Current: 17.2A Rotation Speed: 3450 RPM Service Factor (SF): 1.0 Enclosure: ODP Frame Size: 56 Shaft Diameter: 5/8" Keyed Shaft Shaft Length: 1.88" Keyway Size: 0.188" Net Weight: 34.3 lbs / 15.55 kg Model DP120556S (5HP) Voltage: 230V Frequency: 60Hz Current: 17.6A Rotation Speed: 3450 RPM Service Factor (SF): 1.0 Enclosure: ODP Frame Size: 56 Shaft Diameter: 5/8" Keyed Shaft Shaft Length: 1.88" Keyway Size: 0.188" Net Weight: 34.5 lbs / 15.65 kg Model DP120556HZ (5HP) Voltage: 230V Frequency: 60Hz Current: 25A Rotation Speed: 3450 RPM Service Factor (SF): 1.0 Enclosure: ODP Frame Size: 56HZ Shaft Diameter: 7/8" Keyed Shaft Shaft Length: 2.25" Keyway Size: 0.188" Net Weight: 40.8 lbs / 18.5 kg Package Contents All Models: 1 x Air Compressor Motor
| Color | 3HP |
| Power Supply | Hard-Wired (AC power) |
| SKU | sr25050567118333208 |
Author: l***8
Date:
Review: Excelente producto
Color: 2HP
