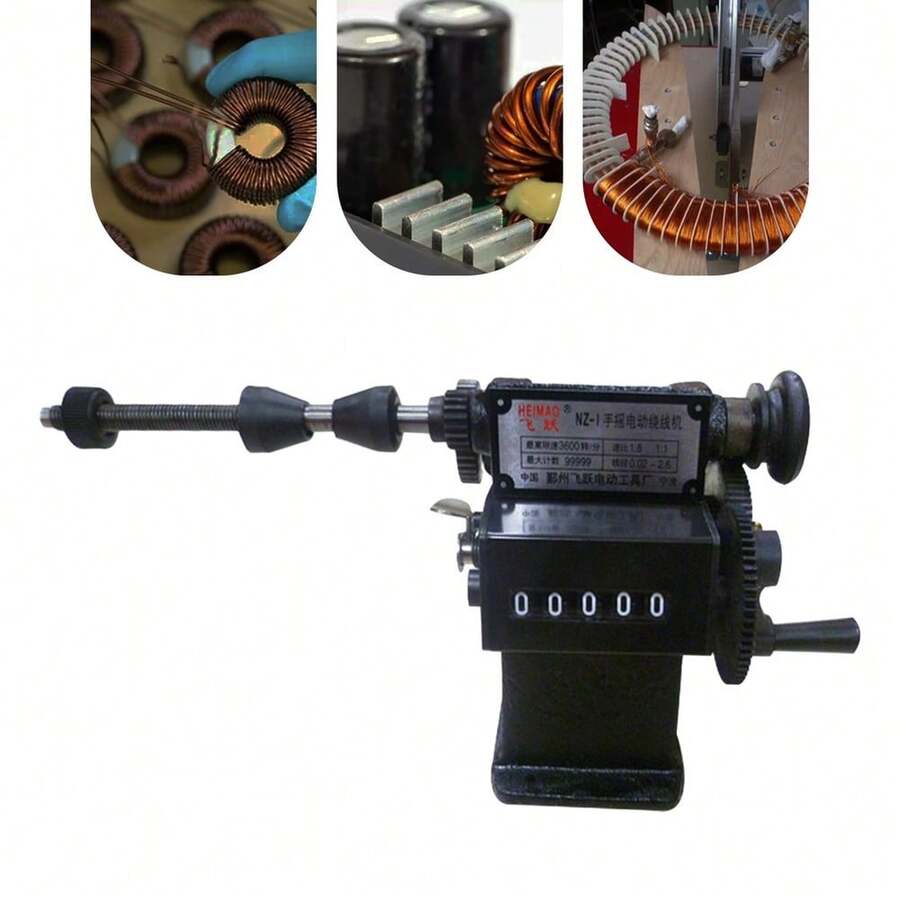

Dual Purpose Manual Coil Winding Machine Counter Wire Winding Tool 0-99999 -

SKU: sr260609111837685031775

$28.60

Style Type:

Shopping Security

Dual Purpose Manual Coil Winder Machine Counter Wire Coil Winding Tool Specifications Weight: 2.74kg/6.04lbs Size(Lxwxh): 9.7x9x18cm/3.81x3.54x7.62in Max Width: 28cm/11.02in Material: Cast Iron Frame, Steel Gear Max Diameter: 15cm/5.9in Maximum Width: 10cm/3.93in Wrap Wire Diameter: 0.02-2.6mm Count Range: 0-99999 Transmission Ratio: 1:8 How to Use 1. You Should Put the Wires on the Axis. 2. Check If All the Gears Are in the Right Place. 3. Add some Oil to the Oil Hole. 4. Turn the Handle. Package Included 1 X Coil Counting and Winding Machine Key Features Accident Prevention:to Reset the Counting Numbers, You Have to Pull the Reset Handle Twice. It Prevents the Machine from Being Reset Accidentally and You Won't Lose Track of Your Working Progress. Manual:This Machine Can Be Used Manually. Mechanical Count:the Machine Counts the Lap Numbers Through Mechanical Function, It Is Reliable and Straightforward. the Maximum Lap Count Is 99999. High Quality:the Frame of This Machine Is Made of Cast Iron Material, Making It Sturdy and Lasts Long. Ergonomic Handle:the Ergonomic Handle Allows You to Use less Force and Prevents Your Hands from Slipping. High-performance Ratio:This Machine Improves Your Work Performance and Speeds Efficiently, You Can Have Better Work Results. Easy Storage:This Machine Is Small in Size and It Doesn't Take up Much Space on Your Worktable or the Storage Room. Multi-functional: This Machine Is Capable of Wrapping Wires of 0.02-2.6mm, It Can Undertake Many Different Tasks and Wrap Wires of Different Diameters. Details Three Installation Holes: There Are Three Holes on the Machine Floor, It Is Used for the Fixation Between the Machine and the Workbench. Steel Gear:the Steel Gears Have a Great Performance and Long Service Life. Cast Iron Frame:the Frame of This Machine Is Made of Cast Iron, It Is Sturdy and Hard. This Product Lasts Long and Doesn't Break Easily. Plastic Handle: the Handle Is Made of Plastic, It Increases the Friction Between Your Hands and the Handle. so Your Hands Won't Slip from the Handle, It Adds Extra Safety to You. Application This Coil Winding Machine Is Suitable for Motor Winding, Spring Winding, Cotton Winding, Ribbon Winding. It Can Be Used at Home or for Industries. Notes 1. This Machine Must Be Installed on a Hard Solid Surface, Don't Use It If It Is Not Installed. 2. This Machine Can't Be Reset When You're Winding. Every Time You Use It, You Should Check If All the Gears Are in Right Place, or the Outcome May Be Mistaken. 3. Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before Ordering.
